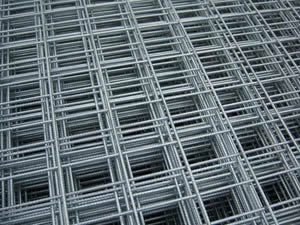

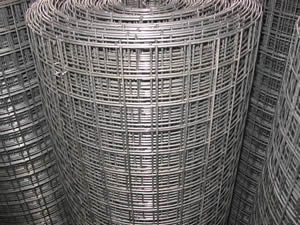

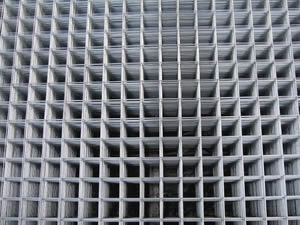

Welded wire mesh or welded mesh is made from plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.
Varieties available according to processing and finish treatment of welded wire mesh:
1, General roll width of Welded Mesh: 3', 4', 5', 6'
2, Welded Mesh Length: 100'
3, General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8"
4, General wire gauge (BWG): 14# to 23#
 |
 |
 |
 |
Mesh Size |
Wire Gauge Diameter |
||
In MM |
In Inch |
BWG No. |
MM |
6.4mm |
1/4Inch |
BWG24-22 |
0.56mm- 0.71mm |
9.5mm |
3/8Inch |
BWG23-19 |
0.64mm - 1.07mm |
12.7mm |
1/2Inch |
BWG22-16 |
0.71mm - 1.65mm |
19.1mm |
3/4Inch |
BWG21-16 |
0.81mm - 1.65mm |
25.4x 12.7mm |
1 x 1/2Inch |
BWG21-16 |
0.81mm - 1.65mm |
25.4mm |
1Inch |
BWG21-14 |
0.81mm - 2.11mm |
38.1mm |
1 1/2Inch |
BWG19-14 |
1.07mm - 2.11mm |
25.4 x 50.8mm |
1 x 2Inch |
BWG17-14 |
1.47mm - 2.11mm |
50.8mm |
2Inch |
BWG16-12 |
1.65mm - 2.77mm |
