Insect screen also called window screen , Anwang can supply different materials ,widely used in hotels and buildings to prevent insects and bugs
General specifications of insect screen/window screen :14mesh x 14 mesh, 16mesh x 14mesh, 16mesh x 16mesh, 18mesh x 16mesh, 18mesh x 18mesh, 18mesh x 14mesh General wire diameter: BWG31 or BWG 32.
 |
 |
 |
 |
| Description | Specification | Application | ||
| Mesh | Wire Gauge | Size | ||

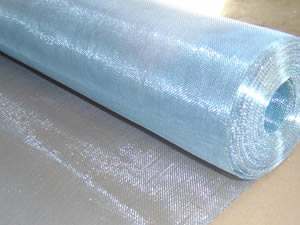

| Galv. iron insect screen/window screen | 10x10 | BWG31 |
3'x100' |
Electric galvanized after weaving. White or light-blue |
| 14x14 | ||||
| 16x16 | ||||
| 18x18 | ||||
| 18x14 | ||||
| 22x22 | ||||
| 24x24 | ||||
| 30x30 | ||||
| Enamelled iron insect screen/window screen | Same as above | Green or dark green | ||
| Aluminum iron insect screen/window screen | Same as above | Silver | ||
| Aluminum insect screen/window screen | Same as above | Material: Al-Mg alloy or pure aluminum | ||
| Fiber glass insect screen/window screen | 12x12 | BWG31 BWG32 |
3'x100' 4'x100' 1x25M 1.2x25M | All kinds of color |
| 14x14 | ||||
| 16x16 | ||||
| 16x14 | ||||
| Plastic insect screen/window screen | 12x12 | Same as above | Mesh 12,14,16: hinged weave. Mesh 18,22,24: plain weave White , blue, green, etc. |
|
| 14x14 | ||||
| 16x16 | ||||
| 18x18 | ||||
| 22x22 | ||||
| 24x24 | ||||
| 30x30 | ||||
| Stainless steel insect screen/window screen | 14x14 | SWG38 |
3'x100' |
Material:304,316,316L |
| 16x16 | ||||
| 18x18 | ||||
| 18x14 | ||||
| 20x20 | ||||
| PVC insect screen/window screen | 12x12 | BWG31 BWG32 |
Same as above | Fit in with petroleum, pipeline, package, all kinds of color |
| 14x14 | ||||
| 16x16 | ||||
| 18x18 | ||||
