Wire materials: Hexagonal wire mesh is manufactured in galvanized iron or PVC coated wire.

Application: Hexagonal wire netting Hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.

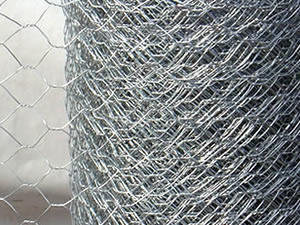

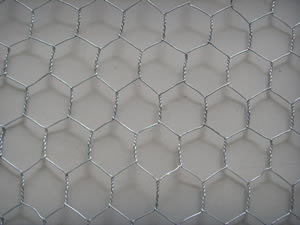

Galvanized hexagonal wire netting
mesh			Min. Gal.v. G/SQ.M	Width	Wire Gauge (Diameter) BWG
Inch	mm	Tolerance(mm)
3/8"	10mm	±1.0	0.7mm - 145	2' - 1M	27, 26, 25, 24, 23
1/2"	13mm	±1.5	0.7mm - 95	2' - 2M	25, 24, 23, 22, 21
5/8"	16mm	±2.0	0.7mm - 70	2' - 2M	27, 26, 25, 24, 23, 22
3/4"	20mm	±3.0	0.7mm - 55	2' - 2M	25, 24, 23, 22, 21, 20, 19
1"	25mm	±3.0	0.9mm - 55	1' - 2M	25, 24, 23, 22, 21, 20, 19, 18
1-1/4"	31mm	±4.0	0.9mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
1-1/2"	40mm	±5.0	1.0mm - 45	1' - 2M	23, 22, 21, 20, 19, 18
2"	50mm	±6.0	1.2mm - 40	1' - 2M	23, 22, 21, 20, 19, 18
2-1/2"	65mm	±7.0	1.0mm - 30	1' - 2M	21, 20, 19, 18
3"	75mm	±8.0	1.4mm - 30	2' - 2M	20, 19, 18, 17
4"	100mm	±8.0	1.6mm - 30	2' - 2M	19, 18, 17, 16

Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.

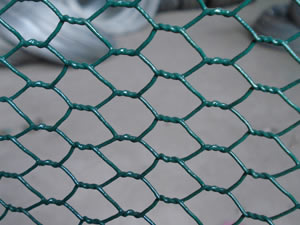

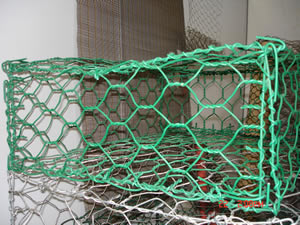

PVC Coated Hexagonal Wire Netting
Mesh		Wire Gauge (MM)	Width
Inch	MM
1/2"	13mm	0.6mm - 1.0mm	2' - 2M
3/4"	19mm	0.6mm - 1.0mm	2' - 2M
1"	25mm	0.7mm - 1.3mm	1' - 2M
1-1/4"	30mm	0.85mm - 1.3mm	1' - 2M
1-1/2"	40mm	0.85mm - 1.4mm	1' - 2M
2"	50mm	1.0mm - 1.4mm	1' - 2M
We also offer other specifications you need
